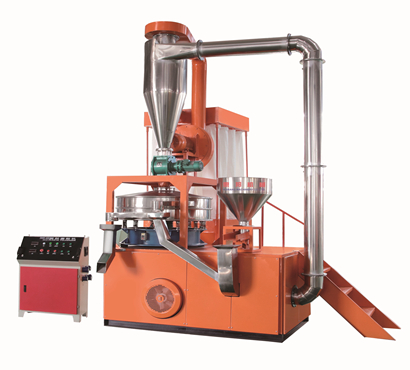

The MPT series is an upgraded version of the SMW series turbo mill. The same as SMW series, it is mainly used for the grinding of PVC pipes, profiles, and sheet. It commonly used in combination with granulator, adding the shredder, they form a three stage highly automated recycling system for shredding, crushing and grinding. In terms of energy consumption ratio for producing one kilogram of powders, this pulverizer has the characteristics of high efficiency and good performance.
The MPT series of high-speed PVC Pulverizer belong to the turbo mill series, with a cutter diameter range of 500-800 mm. The material to be pulverized is sucked into the grinding cavity through the center of the vertical fixed cutter. Between the fixed cutter and the rotating cutter, the centrifugal force generated by the high-speed rotation of the movable cutter is thrown to the outeredge. The ground powder is collected by the grinding chamber through the fan and cyclone system.
MPT series turbo type pulverizing systems are mainly used in the processing of PVC powder to provide PVC powder for the production line. Vibrating screens are usually used to ensure the precise powder fineness for the production of plastic products, and then to ensure the molded products The surface is smooth and the thickness is uniform. Applications in other fields are often used synchronously with shredders and crushers to efficiently recycle waste products and scraps on plastic product lines.
Grind samples (PVC)
•Highly automated production, reducing labor costs
•Low power consumption and large output
•Compact structure and small footprint
•Save and simple adjustment of cutting gap
•Wide range of accessories
•Dual cooling system
•Production stability
Main motor |
22-110kw |
Input material size |
≤10mm |
Number of blades |
depending on the specific model |
Output |
100-1200kg / h |
Applicable materials |
PVC pipes, profiles, plates, wood plastic, EPS ... |
— Improve efficiency and productivity. Optional screens with different apertures.
— Suitable for different material application requirements
— Detect and separate metal impurities to ensure the quality of the mill
If it only contains metal impurities such as iron nuggets, the hopper magnet can be used.
— According to the characteristics of the material, selecting the appropriate feeding method can improve production efficiency
Vacuum feeder · Screw loader · Driving feeder · Vibrating feeder · Belt conveyor
— Customized according to customers requirements
The normal package is wooden box.
If container is too tight, we will use PE film for packing or pack it according to customers special request.
