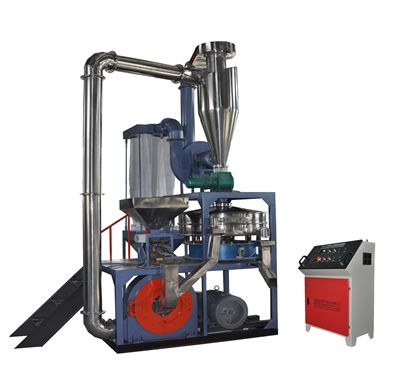

MF series mill can be used for economical and efficient grinding of various thermoplastic materials at normal temperature, such as HDPE MFPE LLDPE LDPE PP PVC ABS PA PC and so on. Produces high-quality powders (free-flowing powders with high bulk density) for rotomolding applications. Relative to output and energy consumption, the MF series is the most economical air-cooled mill. The smaller footprint (compact size) makes it ideal for producers or processors.
The brand-new MF series PE pulverizer belongs to the Disc-type pulverizer series, which disc diameter from 350mm to 800mm. This pulverizer is high speed, precision grinders for the processing of medium hard, impact resistant and friable materials, for example PE、PVC、PP、ABS、PA、EVA、PET、PS、PPS、EPS、PC、Foam、Cow leather and so on.
One of the main fields of use of HUIBANG MF series plastic pulverizer is the pulverization of PE for rotomolding applications. In this process, a screening machine is necessary to ensure the right output size.
Area of application:

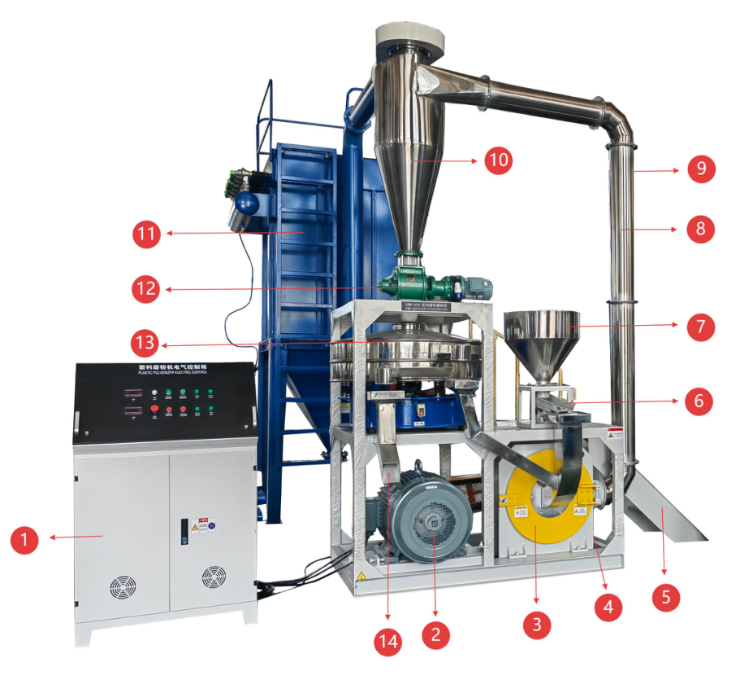

| Component Comparison Table | |
| 01. Independent Control Cabinet | 02. Main Motor |
| 03. Pulverizer's Host | 04. Cooling Water Intake |
| 05. Ladder | 06. Vibrating Feeder |
| 07. Material Feed Inlet | 08. Pipe |
| 09. Cooling Water Outtake | 10. Cyclone Separator |
| 11. Dust Catcher | 12. Air Shutter |
| 13. Vibration Sieve | 14. Material Discharge Port |
| Model | MF-400 | MF-500 | MF-600 | MF-800 |
| Diameter of disc (mm) | ￠400 | ￠500 | ￠600 | ￠800 |
| Main motor power (kw) | 22 | 37 | 45/55 | 75/110 |
| Capacity (kg/h) | 50-300 | 80-500 | 120-800 | 200-1200 |
| Note: The output is affected by material properties, feed size, powder size and so on. | ||||
— Improve efficiency and productivity. Optional screens with different apertures.
— Suitable for different material application requirements
— Detect and separate metal impurities to ensure the quality of the mill
If it only contains metal impurities such as iron nuggets, the hopper magnet can be used.
— According to the characteristics of the material, selecting the appropriate feeding method can improve production efficiency
Vacuum feeder · Screw loader · Driving feeder · Vibrating feeder · Belt conveyor
— Customized according to customers requirements
The normal package is wooden box.
If container is too tight, we will use PE film for packing or pack it according to customers special request.
