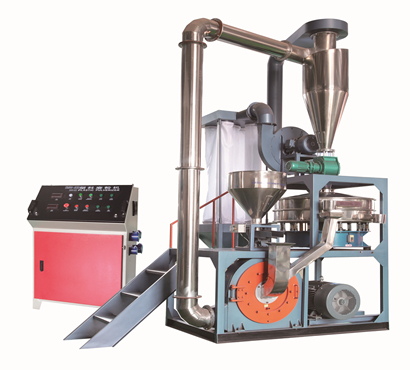

SMW Series PVC Pulverizer Machine

The brand-new SMW series plastic pulverizer belongs to the turbo-type pulverizer series, which knife flywheel diameter

from 500mm to 800mm. This pulverizer is high speed, turbo-type grinders for the processing of medium hard, impact resistant

and friable materials,its mainly used in the field of rigid PVC recycling, such as the recycling of defective products of PVC pipes,

profiles, plates and corner residual materials.

Working principle

In the airflow of high-speed rotation of the cutter head, the material is thrown toward the tooth plate due to the centrifugal force,

and is crushed by the friction between the blade and the tooth plate. The fine powder is discharged with the air flow, and the

coarse particles close to the tooth plate cannot be ruled out due to the obstruction of the baffle and continue to be crushed until the

powder is discharged with wind.

Grind samples （PVC）

1.Compared with similar grinders, its output is greatly improved (increased by 20%-50%) under the same power. It is energy-saving.

2.The dust collector is added to effectively reduce dust pollution.

3.The discharging of the main fan reduces labors intensity of operating workers.

4.The door cover of the host can be opened for convenience of maintenance and replacement of cutters.

5.Wind and water cooling system are adopted to decrease the working temperature inside the machine body, so the grinded material

uneasy for denaturalization .

6.The powder mesh is adjustable (20-100 mesh).

• Simple adjustment of cutting gap

• Economical and effective

• Easy to repair and replace parts

• Low power consumption and high output
