Vibration Sieve

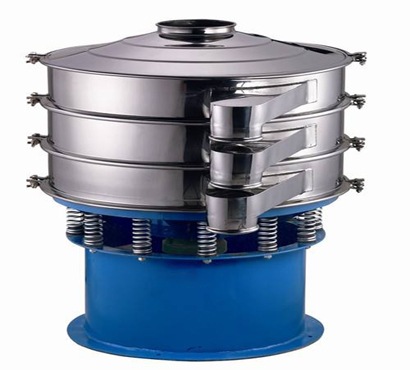

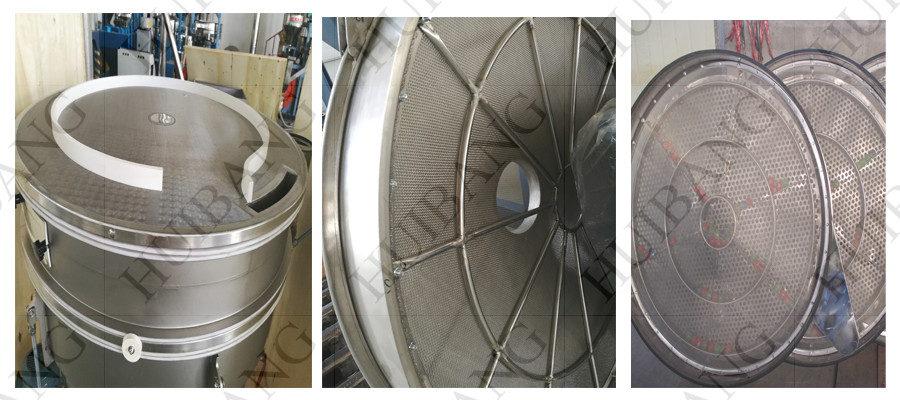

The circular vibrating sieve is a high-precision powder screening equipment featured with low noise, high working efficiency and fast screen replacement. The screen mesh can be replaced within only 3 to 5 minutes. Adopting a fully enclosed structure, it effectively prevents dust leakage and is suitable for screening and filtering grains, flour, viscous materials and various powder materials.

The rotary vibrating sieve takes a vertical vibration motor as the vibration source. Eccentric weights are installed at both ends of the motor, converting the motor’s rotary motion into three-dimensional horizontal, vertical and inclined vibration transmitted to the screen surface. Adjusting the phase angle of the upper and lower eccentric weights can change the material movement trajectory on the screen surface to meet different screening requirements.

Application ：

Chemical Industry: Resin pigments, calcium carbonate, decorative coatings, pharmaceutical raw materials, grease, paint, color powder and more.

Abrasive & Ceramic Industry: Construction sand, mica, alumina, silica sand, abrasives, refractory materials, industrial slurry and other materials.

Food Industry: Sugar, salt, alkali powder, flour, nut powder, whey protein powder, maltodextrin, flavors, sucralose, xanthan gum, soy lecithin, farina, gourmet powder, starch, milk powder, yeast powder, pollen, food additives, soybean milk, fruit juice and other food raw materials.

Papermaking Industry: Coated slurry, exhaust liquid, papermaking wastewater and waste liquid recycling treatment.

Metallurgy & Mining Industry: Quartz sand, mineral sand, ore powder, titanium oxide, zinc oxide and other mineral materials.

Mechanical Industry: Casting sand, charcoal powder, graphite, powder metallurgy materials, electromagnetic materials, metal powder and more.
